General

After launching iFMS, you will start off from FMC main menu page. The menu pages are the only FMC pages that are specific to iFMS, all other FMC pages are generic “Boeing style” FMC pages. From the menu pages you can change the iFMS configuration settings and aircraft type and load and save routes, from here also you exit the application. Use the touch screen to program the FMC.

Connection

Before Trying to connect iFMS to your flight simulator, you need to download and install a tool called FStoiFMS on the computer running the simulator, FStoiFMS for your favorite flight simulator can be downloaded here.
To start using iFMS first of all you need to tell iFMS the IP address of the computer running your Flight Simulator with FStoiFMS installed. This can be done by navigating to the config page from the menu page, typing the IP adress in scratchpad and copying it into the "FS SERVER" field by clicking the button next to the field. Look for the keyword “CONNECTED” on the same line to indicate if iFMS is currently connected to a computer running flight simulator with FStoiFMS. Alternatively you can type the word "GPS" in this field, iFMS will then use the GPS as the datasource. Be aware though, under no circumstances should you use iFMS for real world aviation navigation! This is against the terms of use of iFMS and may be unlawfull.
Windows might by default block the inbound connection between the iFMS device and your flight simulator. Normally Windows should prompt you the first time your simulator tries to connect whether to allow this connection, but if that has not happened you can manually configure Windows to not block the connection. If your still having problems to connect it is worth to know that iFMS connects to the flight simulator over IP port 5193, some virus checkers and/or firewall software running on the flight sim computer may block this port completely. If you're having difficulties connecting your iFMS, verify the port isn't being blocked and if so you might have to configure an exception to allow communication over this port. Contact iFMS support if you require assistance.

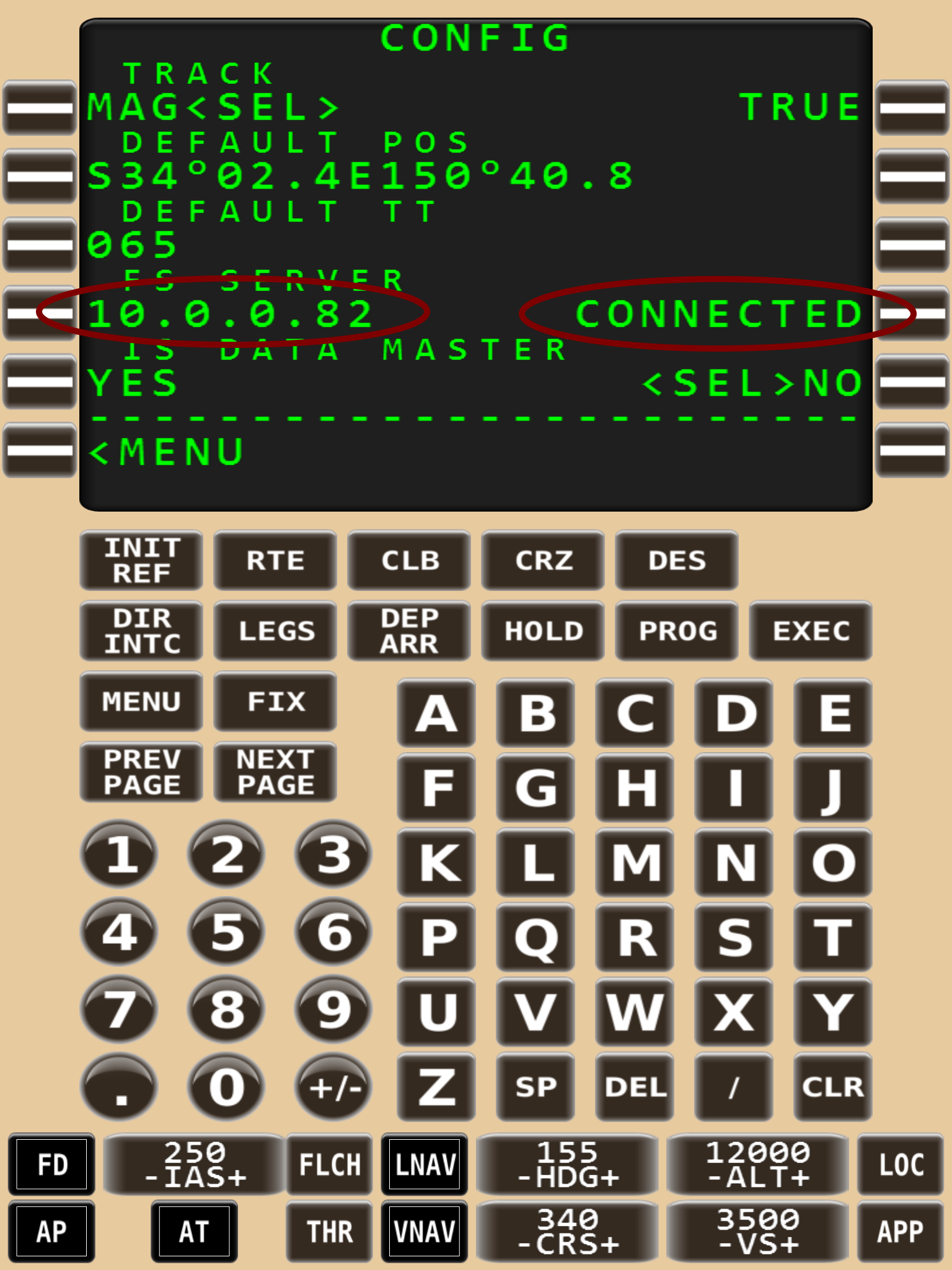

Connected to Network

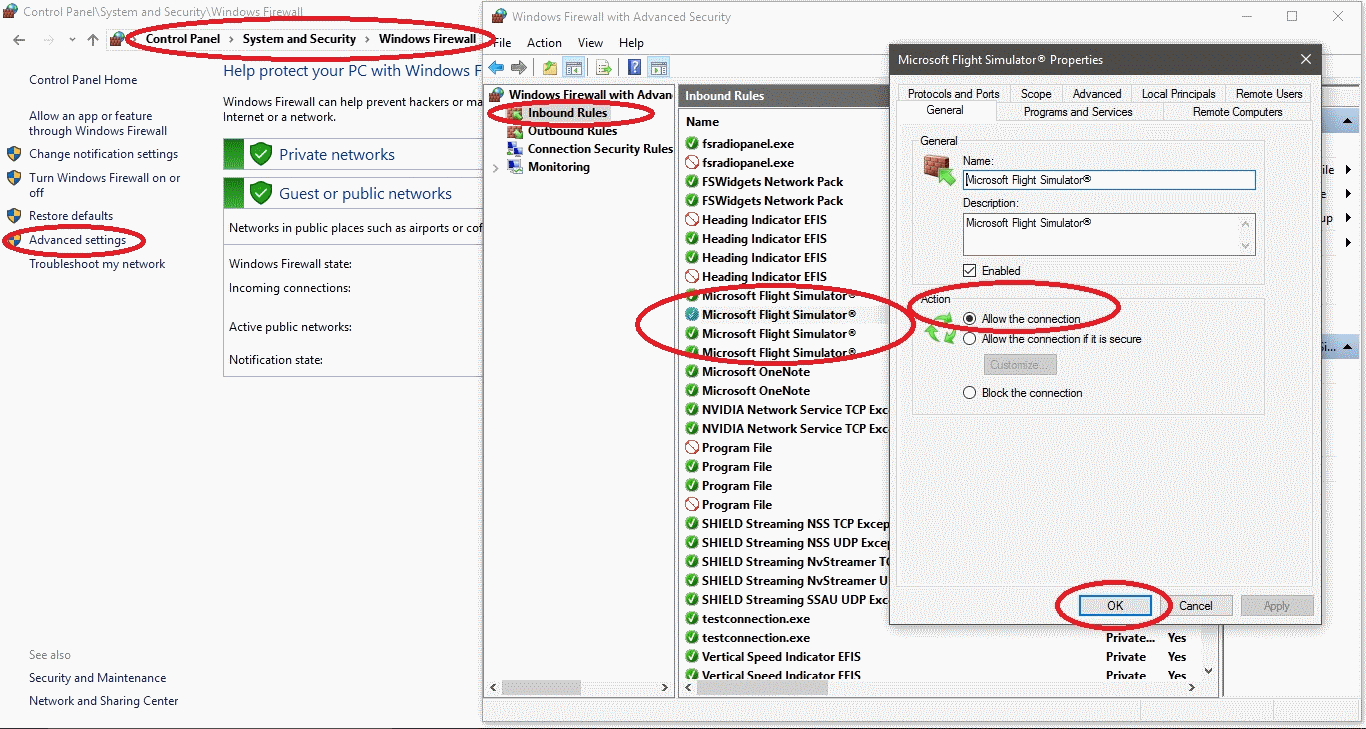

Manually configure Windows firewall

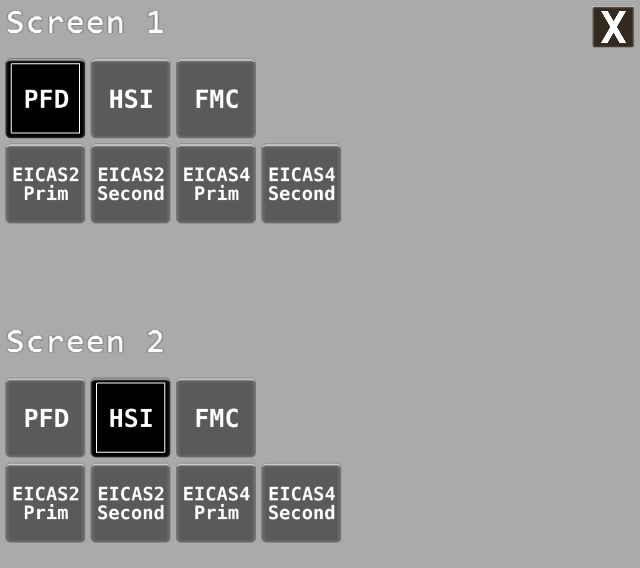

Screen Selection Menu

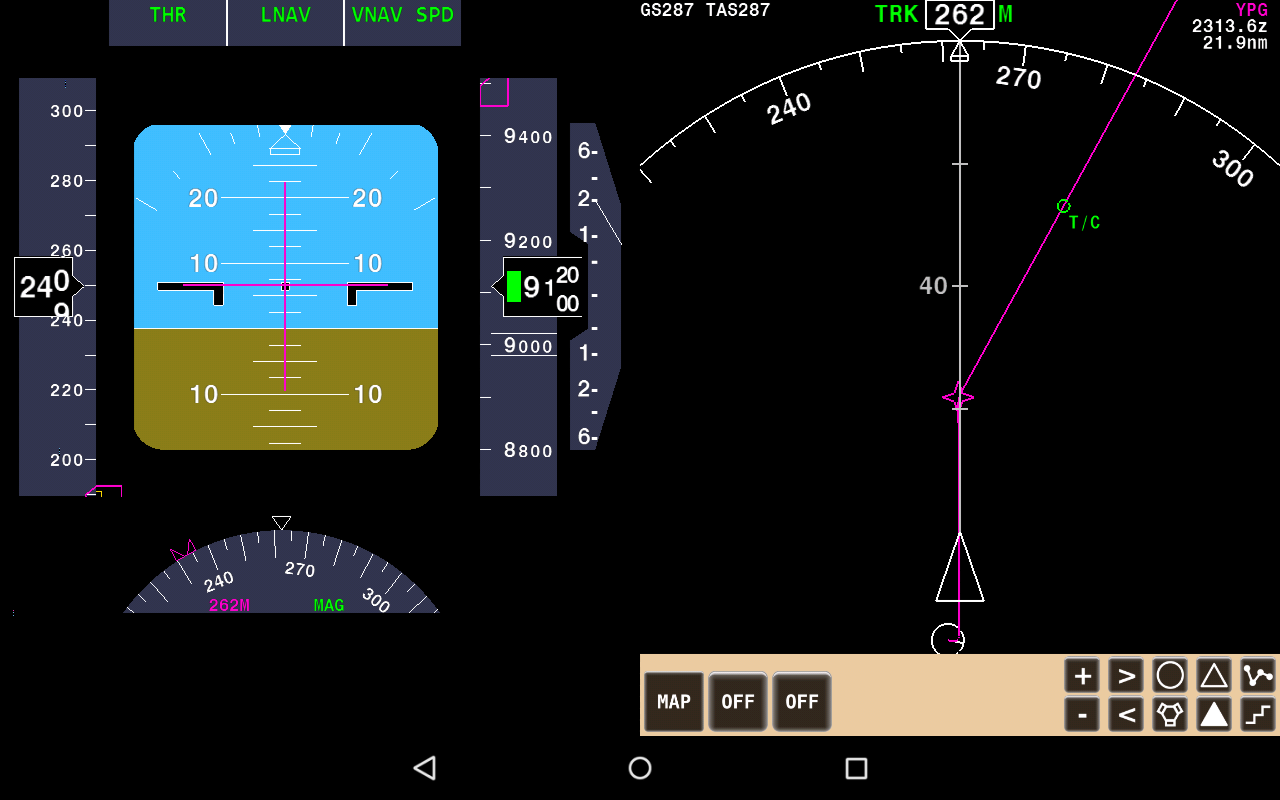

2 Screens Landscape Mode

Multiple screens

iFMS contains the following Boeing style screens:
- Flight Management Computer (FMC)
- Primary Flight Display (PFD)
- Navigatin Display (HSI or NAV)
- 2 Engine Primary Display (EICAS2 Prim)
- 2 Engine Secondary Display (EICAS2 Second)
- 4 Engine Primary Display (EICAS2 Prim)
- 4 Engine Secondary Display (EICAS2 Second)

Which of these screens are displayed is configured in the screen selection menu. This menu is accessed by double tapping the top right corner of your device.

Depending on the device orientation, iFMS will either display only screen on its own, two screens side by side, or two screens on top of each other.

When 2 screens are selected, some rules apply: First of all you need to know that, some screens are “native portrait”, others are “native square”.
This has an impact on how screens will be displayed when you hold your device in portrait or landscape mode.

The native portrait screens are the FMC and HSI (NAV) display, the native square screens are the EICAS screens and PFD.
- 2 native square screens can be displayed side-by-side or on top of each other.
- A native portrait screen can only be displayed on its own on portrait mode, but it can be displayed next to a native square or another native portrait screen in landscape mode.

If you have a native portrait screen selected either as first or second and the device is held in portrait mode, only the first will be displayed.

Using the information above you should be able to get your device to display whatever screen or combination of screens you require.

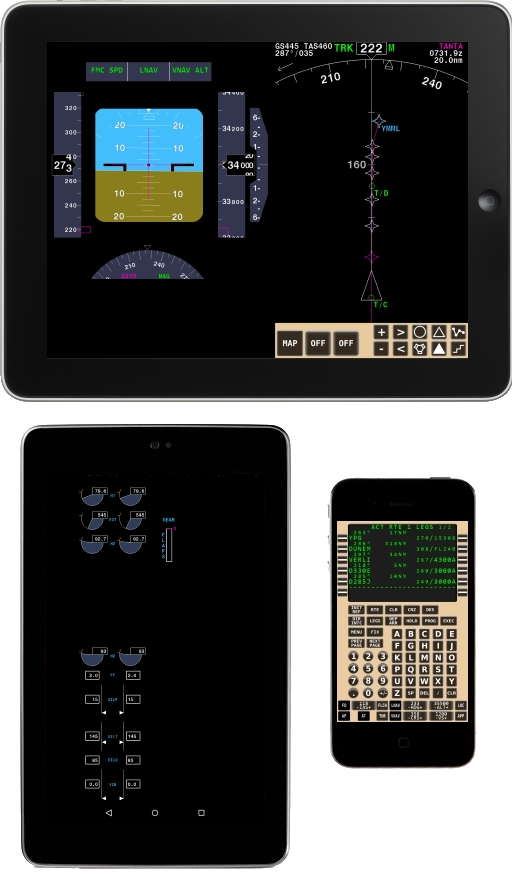

Multiple devices

As of version 2.0, iFMS includes “multi-device capability”, this means you can program a route on one device and all other devices connected to the same slight sim will sync and display this route and all associated information. It is configured in a “master-slave” model, meaning you set one device as master and all the others as slave, the slaves will sync with whatever is programmed in the master. Typically this means that the device where you will be displaying your FMC will be the device that is configured as master. Obviously you can have only one master.

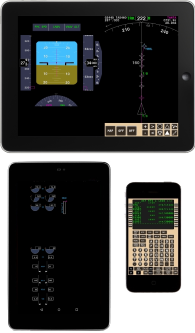

Multiple Devices

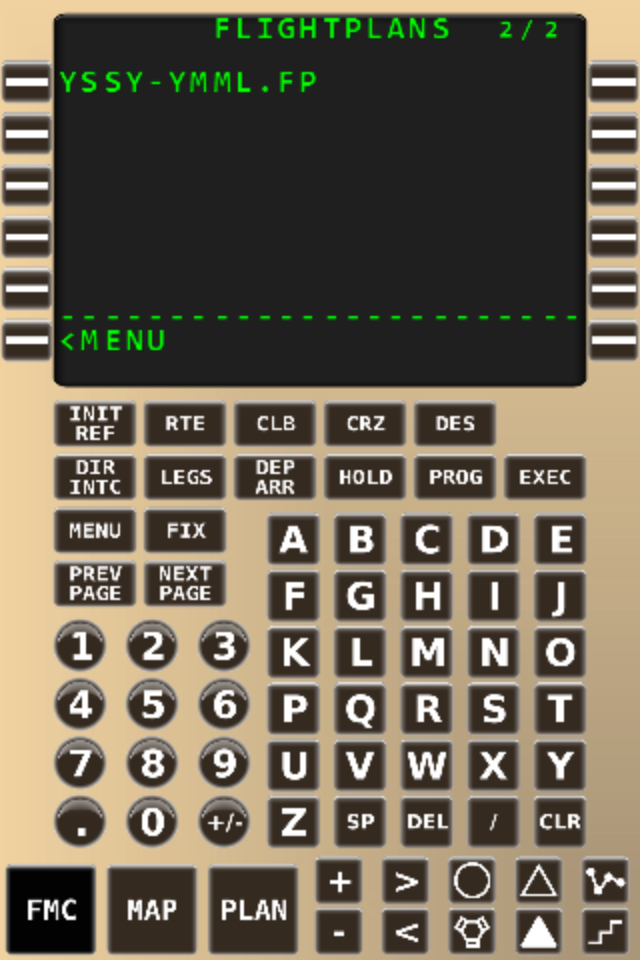

Load Flight Plan

Saving/Loading programmed routes

iFMS allows you to save the current active route and load previously saved routes. To do this just go to the menu page, type the name you want to give the route in the scratchpad and press SAVE ROUTE. To load a saved route, go to the menu page and press LOAD ROUTE. A list with saved routes will then appear. Just select the route you which one to load.

FMC Integrated MCP Bar

The FMC display has a fully integrated MCP module that includes appart from the standard FSX/X-Plane functionality, an LNAV/VNAV function and a FL CH function. It is still possible to use the MCP panel present in your Flight Simulator as well of course.

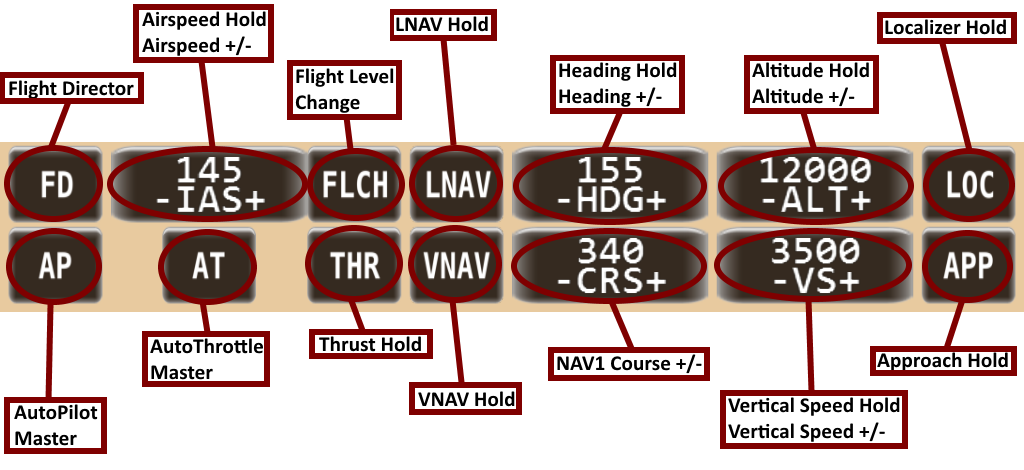

MCP Bar

EFIS Bar

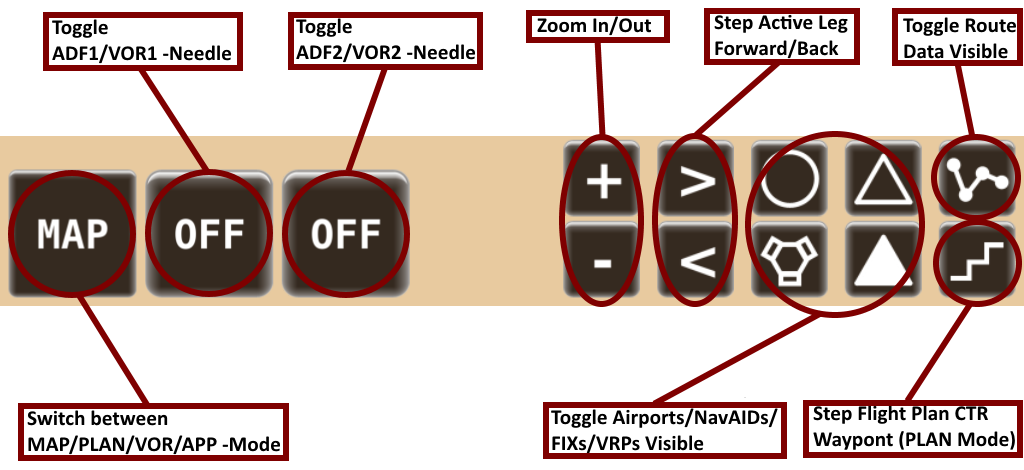

NAV Display EFIS Bar

The EFIS bar at the bottom of the HSI display is used to switch the display between MAP/PLAN/VOR/APP mode, toggle the VOR/ADF needles and toggle visibility of NavAIDs, FIXs, VRPs and airports in the MAP/PLAN display.
